Y-connector

... Y-connector

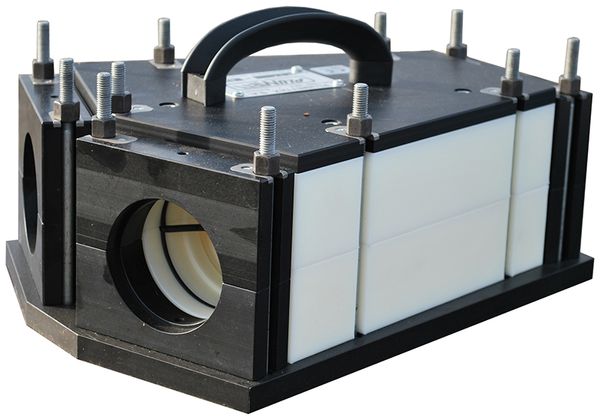

The Y-Connector is used to optimize available space in an existing occupied duct and allow for installation of a second cable, or multiple microducts when "jetting, blowing or floating" cables. For cables Ø 9 to 36 mm and ducts OD 20 to 63 mm. Performance obtained corresponds to at least 50% of the one achieved with the first cable. One branch of the Y-connector, connected to the machine is used for feeding the second cable in the duct. Installation distance achieved with two additional cables is nearly the same as the one obtained with one cable.

Advantages:

  • Small and light
  • Allows access to very narrow chambers
  • Easy transportation
  • Easy maintenance
  • Easy manipulation (possibility to use it in both directions)
Standard version Y-Connector
Type Standard
Application IntelliJet™ / MiniJet™ / CableJet™ / SuperJet™
Cable dia. [mm] 9-36
Duct OD [mm] 20-63
Max. air pressure [bar] 12
Length [mm] 355
Width [mm] 285
Height [mm] 180
Total shipping weight [kg] 13.0
Standard version Y-Connector
Type 40/40/18
Application IntelliJet™ / MiniJet™ / CableJet™ / SuperJet™
Cable dia. [mm] 6-18
Duct OD [mm] 40
Max. air pressure [bar] 12
Length [mm] 310
Width [mm] 205
Height [mm] 95
Total shipping weight [kg] 4.7
Standard version Y-Connector
Type 50/50/18
Application IntelliJet™ / MiniJet™ / CableJet™ / SuperJet™
Cable dia. [mm] 6-18
Duct OD [mm] 50
Max. air pressure [bar] 12
Length [mm] 310
Width [mm] 205
Height [mm] 95
Total shipping weight [kg] 4.7
Standard40-40-1850-50-18
Standard version Y-ConnectorY-ConnectorY-Connector
Type Standard40/40/1850/50/18
Application IntelliJet™ / MiniJet™ / CableJet™ / SuperJet™IntelliJet™ / MiniJet™ / CableJet™ / SuperJet™IntelliJet™ / MiniJet™ / CableJet™ / SuperJet™
Cable dia. [mm] 9-366-186-18
Duct OD [mm] 20-634050
Max. air pressure [bar] 121212
Length [mm] 355310310
Width [mm] 285205205
Height [mm] 1809595
Total shipping weight [kg] 13.04.74.7
