MiniJet™

... MiniJet™

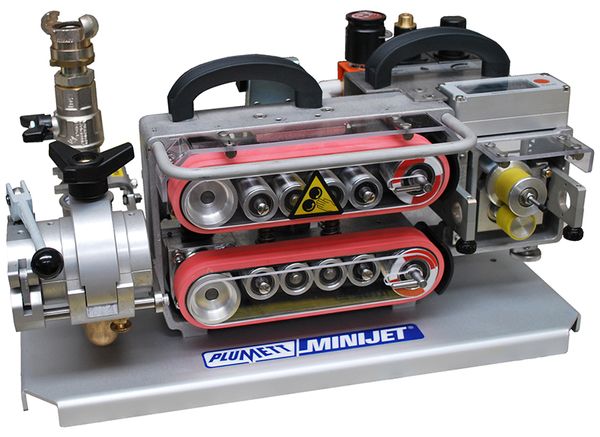

The MiniJet™ blowing machine provides the greatest flexibility to the market offering a virtual total project solution. Thanks to the possibility to install cable, micro-cable and microduct. Discover our multi-task cable and fiber blowing machine (optical fiber, coaxial or multipair). For cables and fibers Ø 4 to 16 mm and ducts OD 7 to 42 mm. The MiniJet™ jetting machine is designed for blowing or floating telecommunication cables and fibers (optical fiber, coaxial or multipair) or multiducts in preinstalled ducts. This multipurpose jetting machine (4 in 1) is easy to use for the installation of cables, micro-cables or micro-ducts by air or water injection, and covers the most common cable diameters. This MiniJet™ jetting machine high effectiveness significantly increases daily production. The belt drive system ensures excellent cable grip without damage and the clamping system absorbs cable diameter tolerances. In addition, its advanced design and construction improve installation performance. Its components are selected and manufactured to meet the highest requirements. Like all our Jetting devices, it is equipped with a distance and speed counter for a better control of the installation.

Standard version MiniJet™ with pneumatic drive
Type P02
Cable dia. [mm] 4-16
Duct OD [mm] 7-42
Drive unit Pneumatic
Max. air consumption of motor [m3/min] 0.5 (at 4 bar)
Pushing force [N] 0-300
Max. speed [m/min] 125
Max. air pressure [bar] 16
Max. water pressure [bar] 25
Dimensions of apparatus l x w x h [mm] 520 x 375 x 300
Dimensions of transport box l x w x h [mm] 620 x 420 x 340
Dimensions of tools and accessories box l x w x h [mm] 620 x 420 x 310
Machine weight [kg] 20
Total shipping weight [kg] 40
Standard version MiniJet™ with hydraulic drive
Type H02
Cable dia. [mm] 4-16
Duct OD [mm] 7-42
Drive unit Hydraulic
Pushing force [N] 0-500
Max. speed [m/min] 125
Hydraulic power pack, type of engine Honda Gasoline GX200
Hydraulic power pack, engine, max. power [kW] 4.3
Hydraulic power pack, engine, max. speed rpm [min-1] 3600
Max. air pressure [bar] 16
Max. water pressure [bar] 25
Dimensions of apparatus l x w x h [mm] 520 x 375 x 300
Dimensions of transport box l x w x h [mm] 620 x 420 x 340
Dimensions of tools and accessories box l x w x h [mm] 620 x 420 x 310
Machine weight [kg] 21
Total shipping weight [kg] 106
P02H02
Standard version MiniJet™ with pneumatic driveMiniJet™ with hydraulic drive
Type P02H02
Cable dia. [mm] 4-164-16
Duct OD [mm] 7-427-42
Drive unit PneumaticHydraulic
Max. air consumption of motor [m3/min] 0.5 (at 4 bar)
Pushing force [N] 0-3000-500
Max. speed [m/min] 125125
Hydraulic power pack, type of engine Honda Gasoline GX200
Hydraulic power pack, engine, max. power [kW] 4.3
Hydraulic power pack, engine, max. speed rpm [min-1] 3600
Max. air pressure [bar] 1616
Max. water pressure [bar] 2525
Dimensions of apparatus l x w x h [mm] 520 x 375 x 300520 x 375 x 300
Dimensions of transport box l x w x h [mm] 620 x 420 x 340620 x 420 x 340
Dimensions of tools and accessories box l x w x h [mm] 620 x 420 x 310620 x 420 x 310
Machine weight [kg] 2021
Total shipping weight [kg] 40106

Add-ons
