Figaro / Figarino

... Figaro

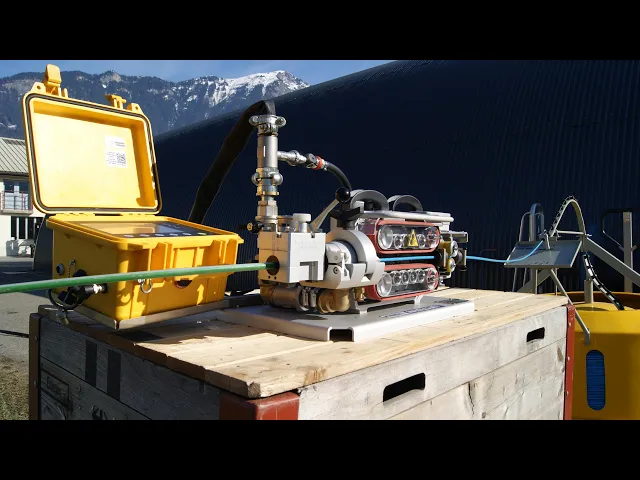

Discover our cutting-edge technology for optical fibre micro-cables: autonomous, intelligent, connected. For micro-cables and fiber units Ø 1.5 to 8 mm and ducts OD 3 to 16 mm. Available in three variants, the OptiJet™, OptiJet™ Reporting and OptiJet™ Automatic help you to push ever further the boundaries of a world that connects at the speed of light. Seasoned installers and companies looking for flexibility can appreciate the confidence that comes with a quick and easy installation with outstanding results. The OptiJet™ series offers them the very best. The OptiJet™ series embodies all the expertise and passion of Plumett teams dedicated to serving you. Laying micro-cables at high-speed has never been so reliable and accessible to everyone while minimising its environmental footprint.

Advantages:

  • easy portability
  • set-up by two persons
  • one person operation
  • no time consuming and cumbersome “figure-eighting” which requests three-four persons
  • doubles the installation per “Jetting” unit and compressor

Figaro / Figarino Additional Advantages:

Due to the open storage basket the Figaro / Figarino can also be used as an “end storage device” Overlength cable can be stored directly into the Figaro / Figarino at the end of the duct route After turning over the stored cable the installation can be continued in the same direction using a cable storage means that the cable installation starts at an intermediate point of the duct route:

  • 1st step: install the maximum length of cable in one direction
  • 2nd step: uncoil the cable from the drum into the cable storage device
  • 3rd step: install the rest of the cable into the opposite direction

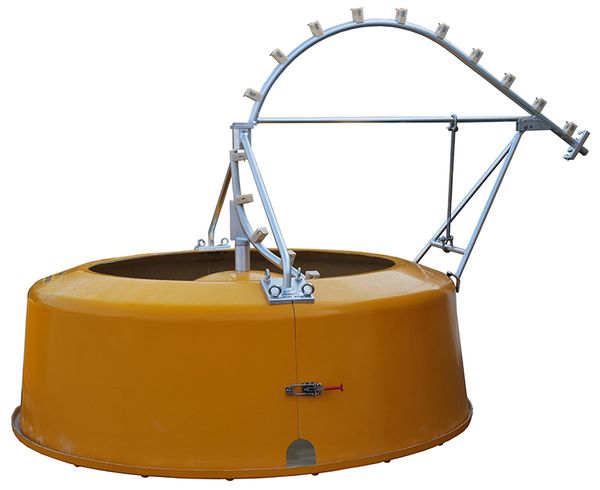

Type Figaro Polyester
Application OptiJet™ / IntelliJet™ / MiniJet™ / CableJet™ / SuperJet™
Cable dia. [mm] 7-16
Speed of pay-in cable [m/min] 125
Overall diameter of apparatus [mm] 1750
Quantity of parts for transport (partially dismantled) 5
Length, in transport position [mm] 2000
Width, in transport position [mm] 1100
Height, in transport position [mm] 1100
Total shipping weight [kg] 109
Type Figaro
Application OptiJet™ / IntelliJet™ / MiniJet™ / CableJet™ / SuperJet™
Cable dia. [mm] 6-24
Speed of pay-in cable [m/min] 125
Overall diameter of apparatus [mm] 2275
Quantity of parts for transport (partially dismantled) 4
Length, in transport position [mm] 2300
Width, in transport position [mm] 1550
Height, in transport position [mm] 1600
Total shipping weight [kg] 160
Type Figarino
Application Intelli-MicroJet™ / MicroJet™ / OptiJet™ / IntelliJet™ / MiniJet™
Cable dia. [mm] 4-8
Speed of pay-in cable [m/min] 125
Overall diameter of apparatus [mm] 1240
Quantity of parts for transport (partially dismantled) 4
Length, in transport position [mm] 2300
Width, in transport position [mm] 1550
Height, in transport position [mm] 1600
Total shipping weight [kg] 160
Figaro PolyesterFigaroFigarino Polyester
Type Figaro PolyesterFigaroFigarino
Application OptiJet™ / IntelliJet™ / MiniJet™ / CableJet™ / SuperJet™OptiJet™ / IntelliJet™ / MiniJet™ / CableJet™ / SuperJet™Intelli-MicroJet™ / MicroJet™ / OptiJet™ / IntelliJet™ / MiniJet™
Cable dia. [mm] 7-166-244-8
Speed of pay-in cable [m/min] 125125125
Overall diameter of apparatus [mm] 175022751240
Quantity of parts for transport (partially dismantled) 544
Length, in transport position [mm] 200023001250
Width, in transport position [mm] 110015501250
Height, in transport position [mm] 110016001100
Total shipping weight [kg] 10916053
