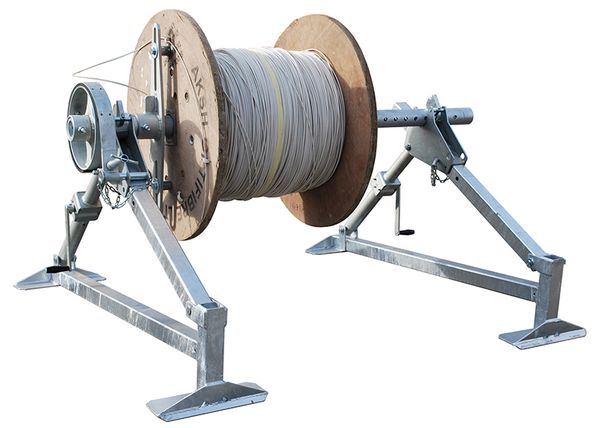

Drumstand
Because cable laying performance also depends on the stability of your drum. Max. drum weight : 500-6000 kg. OD max. of the drum : 1200-2800 mm. Our drumstands are designed for ease the uncoiling and coiling of the cable.
| Standard version | Drumstands |
| Type | DST-30 |
| Drum shaft [mm] | 70 |
| Max. drum OD [mm] | 1800 |
| Max. drum width [mm] | 1200 |
| Max. drum weight [kg] | 3000 |
| Total shipping weight [kg] | 121 |
| Standard version | Drumstands |
| Type | DS-12 |
| Drum shaft [mm] | 75-80 |
| Max. drum OD [mm] | 1200 |
| Max. drum width [mm] | 900 |
| Max. drum weight [kg] | 500 |
| Total shipping weight [kg] | 25 |
| Standard version | Drumstands |
| Type | DST-40 |
| Drum shaft [mm] | 70 |
| Max. drum OD [mm] | 2000 |
| Max. drum width [mm] | 1200 |
| Max. drum weight [kg] | 4000 |
| Height [mm] | 1155 |
| Total shipping weight [kg] | 66 |
| Standard version | Drumstands |
| Type | DST-60 |
| Drum shaft [mm] | 70 |
| Max. drum OD [mm] | 2800 |
| Max. drum width [mm] | 1600 |
| Max. drum weight [kg] | 6000 |
| Height [mm] | 1600 |
| Total shipping weight [kg] | 94 |
| DST 30 | DS 12 | DST 40 | DST 60 | |
|---|---|---|---|---|
| Standard version | Drumstands | Drumstands | Drumstands | Drumstands |
| Type | DST-30 | DS-12 | DST-40 | DST-60 |
| Drum shaft [mm] | 70 | 75-80 | 70 | 70 |
| Max. drum OD [mm] | 1800 | 1200 | 2000 | 2800 |
| Max. drum width [mm] | 1200 | 900 | 1200 | 1600 |
| Max. drum weight [kg] | 3000 | 500 | 4000 | 6000 |
| Height [mm] | 1155 | 1600 | ||
| Total shipping weight [kg] | 121 | 25 | 66 | 94 |
