Excellence and simplicity.

OptiJet™

... OptiJet™

Discover our cutting-edge technology for optical fibre micro-cables: autonomous, intelligent, connected. For micro-cables and fiber units Ø 1.5 to 8 mm and ducts OD 3 to 16 mm. Available in three variants, the OptiJet™, OptiJet™ Reporting and OptiJet™ Automatic help you to push ever further the boundaries of a world that connects at the speed of light. Seasoned installers and companies looking for flexibility can appreciate the confidence that comes with a quick and easy installation with outstanding results. The OptiJet™ series offers them the very best. The OptiJet™ series embodies all the expertise and passion of Plumett teams dedicated to serving you. Laying micro-cables at high-speed has never been so reliable and accessible to everyone while minimising its environmental footprint.

  • Quick start-up and autonomy – Compact, lightweight and battery-powered machine. Very few inserts and sealings, no power cord, no generator nor fuel. It’s not only about convenience and simplicity. Electric drives allow to save compressed air and use smaller compressors for where it is most needed: the duct. There is far less noise on the installation site too.
  • Settings adapted to every situation – Automatic crash test with optimised automatic settings of both pushing force and cable clamping. Exclusive on the market: all OptiJet™ versions determine the maximum pushing force supported by each single cable and duct combination, and, equally important, they also set automatically the according clamping on the cable necessary to gently guide and drive the cable without damage.
  • Maximum protection for micro-cables – Precise control of speed, cable pushing force and belts’ slippage. Exclusive on the market: using belts, a precise speed, pushing force and slippage control, the highly dynamic OptiJet™ drives stop the cable immediately, even during the most abrupt cable stop against a duct connector, avoiding any damaging force or abrasion on the cable jacket.
  • Autonomous operation and optimised energy consumption – Automatic compressed air management. Exclusive on the market: the OptiJet™ Automatic is the first intelligent blowing machine to provide a hand-free micro-cable laying operation. Supervising a construction site alone, reducing consistently the overall energy consumption and CO2 emissions to a minimum, and coming along with all kinds of « surprises » like drum pay-out problems at high speed becomes a standard, not only for the most experienced operators.
  • Accelerated job preparation, visualisation and assistance during installation, simple management of PDF reports – Wireless tablet. The OptiJet™ Reporting and OptiJet™ Automatic help operators with convenient modern assistance tools while providing mandatory documentation of their outstanding work.
  • Direct transmission of reports and access to the digital Remote Monitoring service – Wireless Internet connectivity. Exclusive on the market: the OptiJet™ Reporting and OptiJet™ Automatic give access to the world of constantly evolving Plumettaz Digital Services. Managing teams in real time from abroad, administrating reports, and much more, anywhere simply with a smartphone or a computer in the office is no longer an issue.
Standard version OptiJet™
Type Automatic
Cable dia. [mm] 1.5‐8.0
Duct OD [mm] 3.0-16
Drive unit electric
Batteries included 4
Pushing force [N] 8-150
Max. speed [m/min] 100
Max. air pressure [bar] 16
Automatic crash test yes
Pushing force and cable clamping settings automatic
Air pressure management automatic
Editing and sending reports wireless tablet
Installation assistance software yes
Remote Monitoring digital service yes
Dimensions of apparatus l x w x h [mm] 340 x 400 x 415
Dimensions of transport box l x w x h [mm] 620 x 420 x 410
Dimensions of tools and accessories box l x w x h [mm] 620 x 420 x 410
Machine weight [kg] 20
Total shipping weight [kg] 41
Standard version OptiJet™
Type Reporting
Cable dia. [mm] 1.5-8.0
Duct OD [mm] 3.0-16
Drive unit electric
Batteries included 4
Pushing force [N] 8-150
Max. speed [m/min] 100
Max. air pressure [bar] 16
Automatic crash test yes
Pushing force and cable clamping settings automatic
Air pressure management manual
Editing and sending reports wireless tablet
Installation assistance software no
Remote Monitoring digital service yes
Dimensions of apparatus l x w x h [mm] 315 x 385 x 400
Dimensions of transport box l x w x h [mm] 620 x 420 x 410
Dimensions of tools and accessories box l x w x h [mm] 620 x 420 x 410
Machine weight [kg] 19
Total shipping weight [kg] 40
Standard version OptiJet™
Type -
Cable dia. [mm] 1.5-8.0
Duct OD [mm] 3.0-16
Drive unit electric
Batteries included 2
Pushing force [N] 8-150
Max. speed [m/min] 100
Max. air pressure [bar] 16
Automatic crash test yes
Pushing force and cable clamping settings automatic
Air pressure management manual
Editing and sending reports no
Installation assistance software no
Remote Monitoring digital service no
Dimensions of apparatus l x w x h [mm] 325 x 385 x 325
Dimensions of transport box l x w x h [mm] 620 x 420 x 410
Dimensions of tools and accessories box l x w x h [mm] 620 x 420 x 410
Machine weight [kg] 17
Total shipping weight [kg] 38

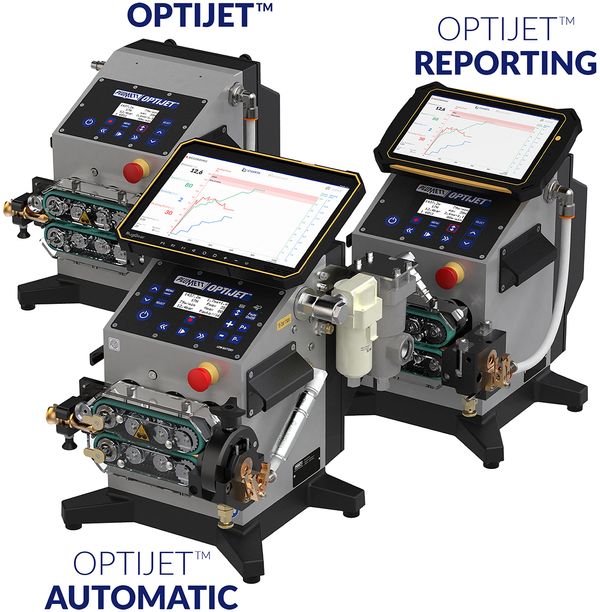

OptiJet™ Automatic OptiJet™ Reporting OptiJet™
Standard version OptiJet™OptiJet™OptiJet™
Type AutomaticReporting-
Cable dia. [mm] 1.5‐8.01.5-8.01.5-8.0
Duct OD [mm] 3.0-163.0-163.0-16
Drive unit electricelectricelectric
Batteries included 442
Pushing force [N] 8-1508-1508-150
Max. speed [m/min] 100100100
Max. air pressure [bar] 161616
Automatic crash test yesyesyes
Pushing force and cable clamping settings automaticautomaticautomatic
Air pressure management automaticmanualmanual
Editing and sending reports wireless tabletwireless tabletno
Installation assistance software yesnono
Remote Monitoring digital service yesyesno
Dimensions of apparatus l x w x h [mm] 340 x 400 x 415315 x 385 x 400325 x 385 x 325
Dimensions of transport box l x w x h [mm] 620 x 420 x 410620 x 420 x 410620 x 420 x 410
Dimensions of tools and accessories box l x w x h [mm] 620 x 420 x 410620 x 420 x 410620 x 420 x 410
Machine weight [kg] 201917
Total shipping weight [kg] 414038

Add-ons

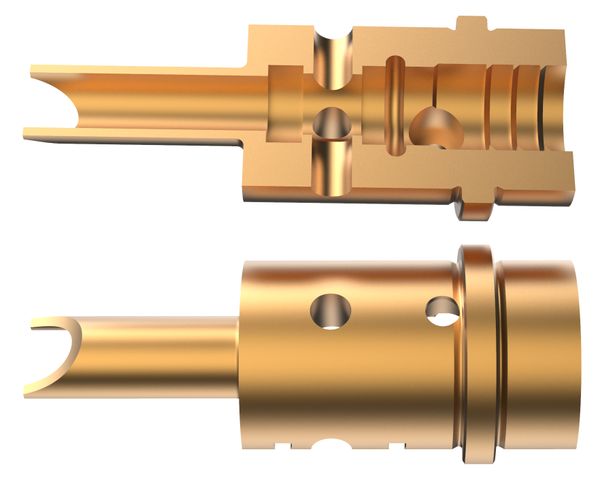

Set of duct inserts

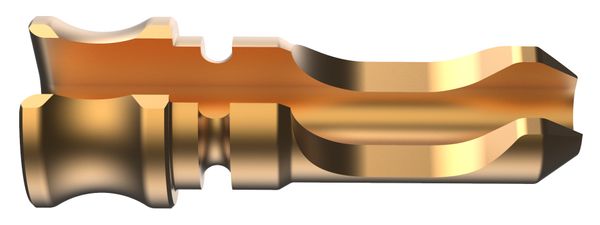

Cable guide

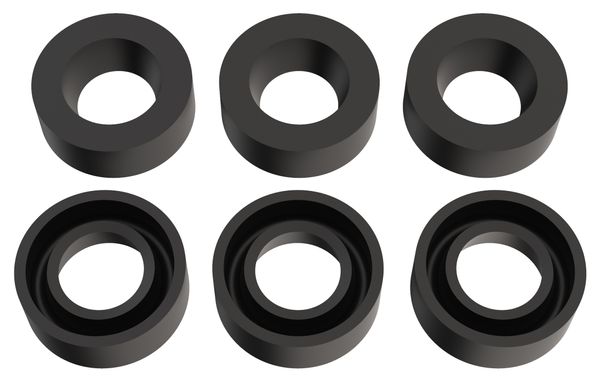

Set of lip seals for cables
Set of lip seals for cables
