SuperJet™

... SuperJet™

With the largest operational range, the SuperJet™ blowing machine provides outstanding results to the most demanding requirements. Discover our telecommunication cable and fiber blowing or floating machine (optical fiber, coaxial or multipair) or multiducts in preinstalled ducts. For cables and fibers Ø 9 to 32 mm and for ducts OD 20 to 63 mm. The SuperJet™ jetting machine is designed for blowing or floating telecommunication cables and fibers (optical fiber, coaxial or multipair) or multiducts in preinstalled ducts. In addition to its ability to install a wide range of cables, this jetting machine is also well suited for laying multitubes. It is very easy to use and comes with a toolbox containing all the tools needed for maintenance and services. Its clamping system ensures good cable grip without damage while absorbing tolerances of the cable diameter. Like all our Jetting devices, it is equipped with a distance and speed counter for a better control of the installation.

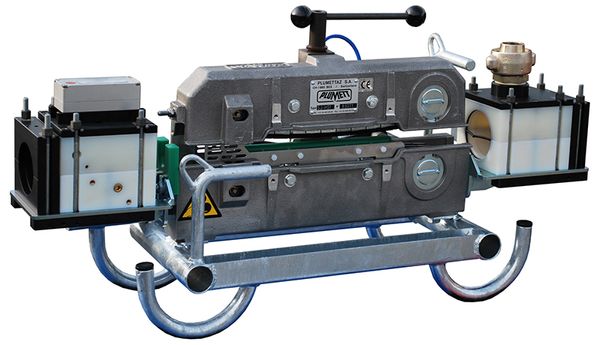

Standard version SuperJet™ with hydraulic drive
Type H01
Cable dia. [mm] 9-32
Duct OD [mm] 20-63
Drive unit Hydraulic
Pushing force [N] 0-1000
Max. speed [m/min] 85
Hydraulic power pack, type of engine Honda Gasoline GX200
Hydraulic power pack, engine, max. power [kW] 4.3
Hydraulic power pack, engine, max. speed rpm [min-1] 3600
Max. air pressure [bar] 12
Max. water pressure [bar] 25
Dimensions of apparatus l x w x h [mm] 915 x 275 x 410
Dimensions of transport box l x w x h [mm] 970 x 380 x 440
Dimensions of tools and accessories box l x w x h [mm] 600 x 400 x 250
Machine weight [kg] 37
Total shipping weight [kg] 153
Standard version SuperJet™ with pneumatic drive
Type P01
Cable dia. [mm] 9-22
Duct OD [mm] 20-63
Drive unit Pneumatic
Max. air consumption of motor [m3/min] 1 (at 4 bar)
Pushing force [N] 0-600
Max. speed [m/min] 120
Max. air pressure [bar] 12
Max. water pressure [bar] 25
Dimensions of apparatus l x w x h [mm] 900 x 345 x 350
Dimensions of transport box l x w x h [mm] 970 x 380 x 440
Dimensions of tools and accessories box l x w x h [mm] 600 x 400 x 250
Machine weight [kg] 35
Total shipping weight [kg] 67
H01P01
Standard version SuperJet™ with hydraulic driveSuperJet™ with pneumatic drive
Type H01P01
Cable dia. [mm] 9-329-22
Duct OD [mm] 20-6320-63
Drive unit HydraulicPneumatic
Max. air consumption of motor [m3/min] 1 (at 4 bar)
Pushing force [N] 0-10000-600
Max. speed [m/min] 85120
Hydraulic power pack, type of engine Honda Gasoline GX200
Hydraulic power pack, engine, max. power [kW] 4.3
Hydraulic power pack, engine, max. speed rpm [min-1] 3600
Max. air pressure [bar] 1212
Max. water pressure [bar] 2525
Dimensions of apparatus l x w x h [mm] 915 x 275 x 410900 x 345 x 350
Dimensions of transport box l x w x h [mm] 970 x 380 x 440970 x 380 x 440
Dimensions of tools and accessories box l x w x h [mm] 600 x 400 x 250600 x 400 x 250
Machine weight [kg] 3735
Total shipping weight [kg] 15367

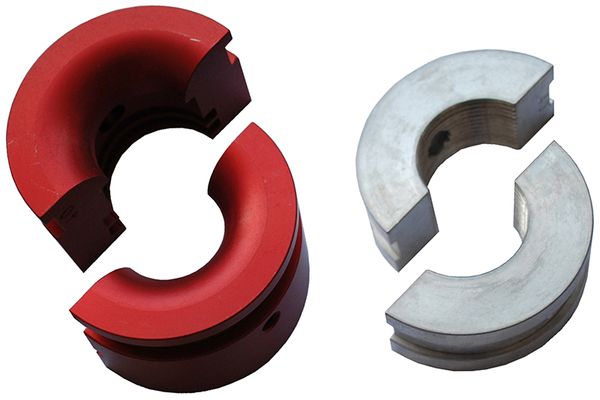

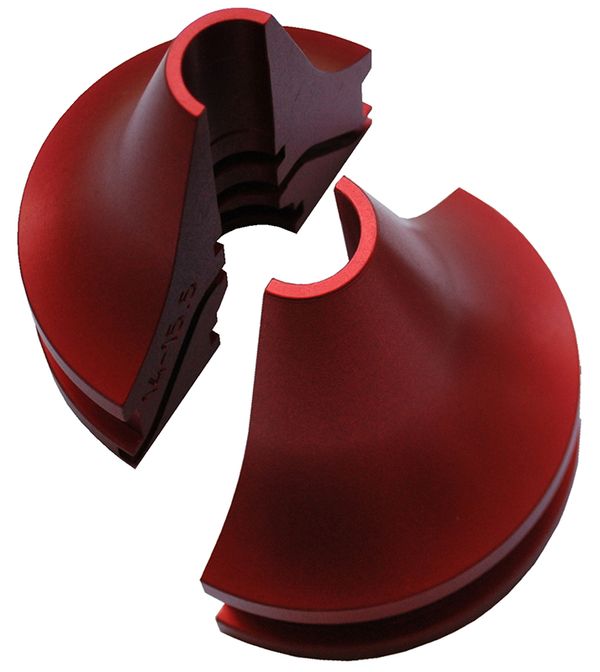

Add-ons
