Floating kit

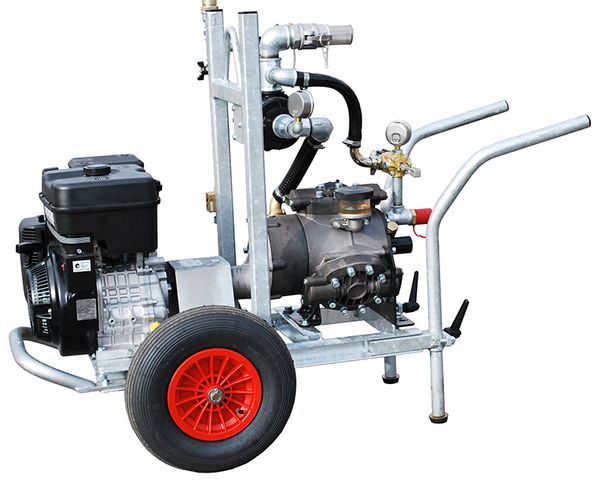

The Floating kit is an equipment for cable floating with water designed for longhaul cable installation. With our floating kits, the cable is installed by means of a pressurised water flow into a duct supported by an additional mechanical pushing force (IntelliJet™, MiniJet™, CableJet™, SuperJet™ or Watucab™).
| Standard version | Floating kit |
| Type | Hydrocab 080-01 |
| Application | IntelliJet™ / MiniJet™ / CableJet™ / SuperJet™ |
| Type of engine / motor | Briggs & Straton Vanguard |
| Engine / motor, max. power [kW] | 9.7 |
| Engine / motor, max. RPM [min-1] | 3600 |
| Pump, flow rate [l/min] | 100 |
| Pump, hydraulic pressure [bar] | 34 |
| Dimensions of apparatus l x w x h [mm] | 1130 x 610 x 1065 |
| Machine weight [kg] | 140 |
| Total shipping weight [kg] | 171 |
| Standard version | Floating kit |
| Type | Hydrocab 300-01 |
| Application | Watucab™ |
| Type of engine / motor | Honda GX 690 |
| Engine / motor, max. power [kW] | 13 |
| Engine / motor, max. RPM [min-1] | 3600 |
| Pump, flow rate [l/min] | 300 |
| Pump, hydraulic pressure [bar] | 15 |
| Dimensions of apparatus l x w x h [mm] | 1170 x 790 x 1200 |
| Machine weight [kg] | 334 |
| Total shipping weight [kg] | 366 |
| Standard version | Floating kit |
| Type | Hydrocab 600-01 |
| Application | Watucab™ |
| Type of engine / motor | Honda GX 690 |
| Engine / motor, max. power [kW] | 13 |
| Engine / motor, max. RPM [min-1] | 3600 |
| Pump, flow rate [l/min] | 600 |
| Pump, hydraulic pressure [bar] | 7.6 |
| Dimensions of apparatus l x w x h [mm] | 1170x790x1200 |
| Machine weight [kg] | 334 |
| Total shipping weight [kg] | 366 |
| 080-01 | 300-01 | 600-01 | |
|---|---|---|---|
| Standard version | Floating kit | Floating kit | Floating kit |
| Type | Hydrocab 080-01 | Hydrocab 300-01 | Hydrocab 600-01 |
| Application | IntelliJet™ / MiniJet™ / CableJet™ / SuperJet™ | Watucab™ | Watucab™ |
| Type of engine / motor | Briggs & Straton Vanguard | Honda GX 690 | Honda GX 690 |
| Engine / motor, max. power [kW] | 9.7 | 13 | 13 |
| Engine / motor, max. RPM [min-1] | 3600 | 3600 | 3600 |
| Pump, flow rate [l/min] | 100 | 300 | 600 |
| Pump, hydraulic pressure [bar] | 34 | 15 | 7.6 |
| Dimensions of apparatus l x w x h [mm] | 1130 x 610 x 1065 | 1170 x 790 x 1200 | 1170x790x1200 |
| Machine weight [kg] | 140 | 334 | 334 |
| Total shipping weight [kg] | 171 | 366 | 366 |
